TAGS edge protector stainless 100mm

Rope Access Stainless Edge Protection

Fixed stainless steel edge protection device for rope access

Designed to protect ropes from abrasion over edges and provide controlled routing

Material

Body: Stainless steel ( 316 grade)

Rope guides: Solid stainless steel round bar

Finish: Brushed/mill finish

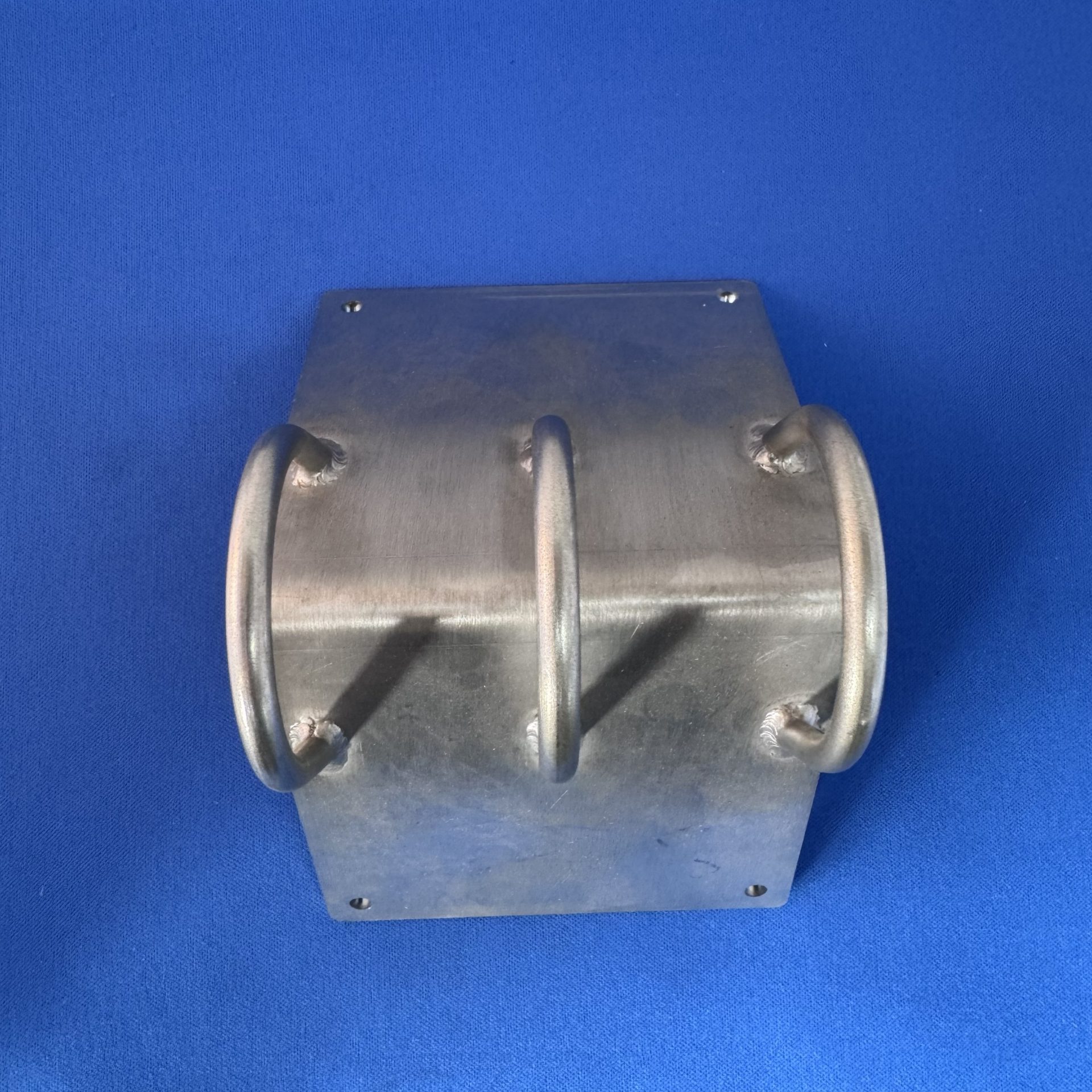

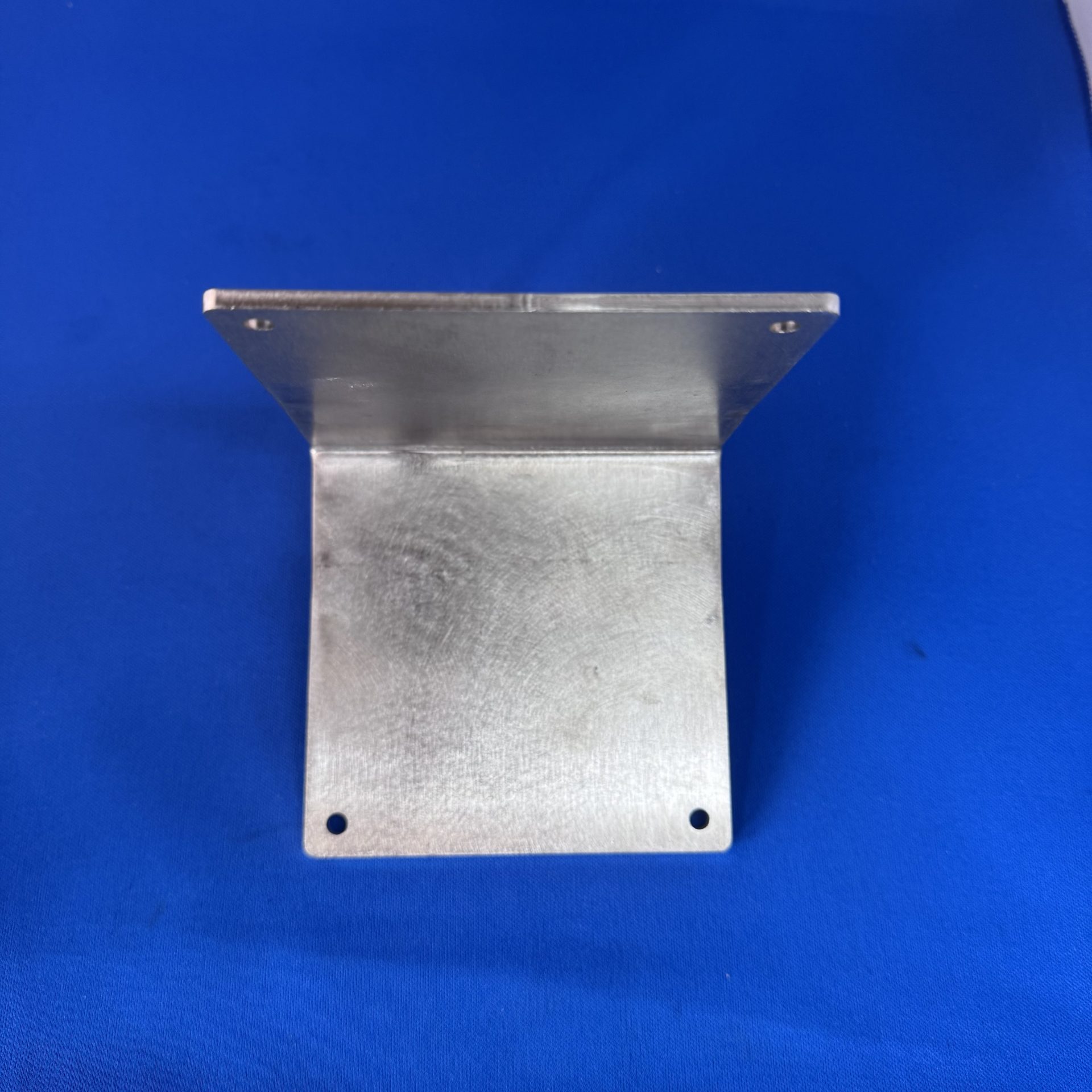

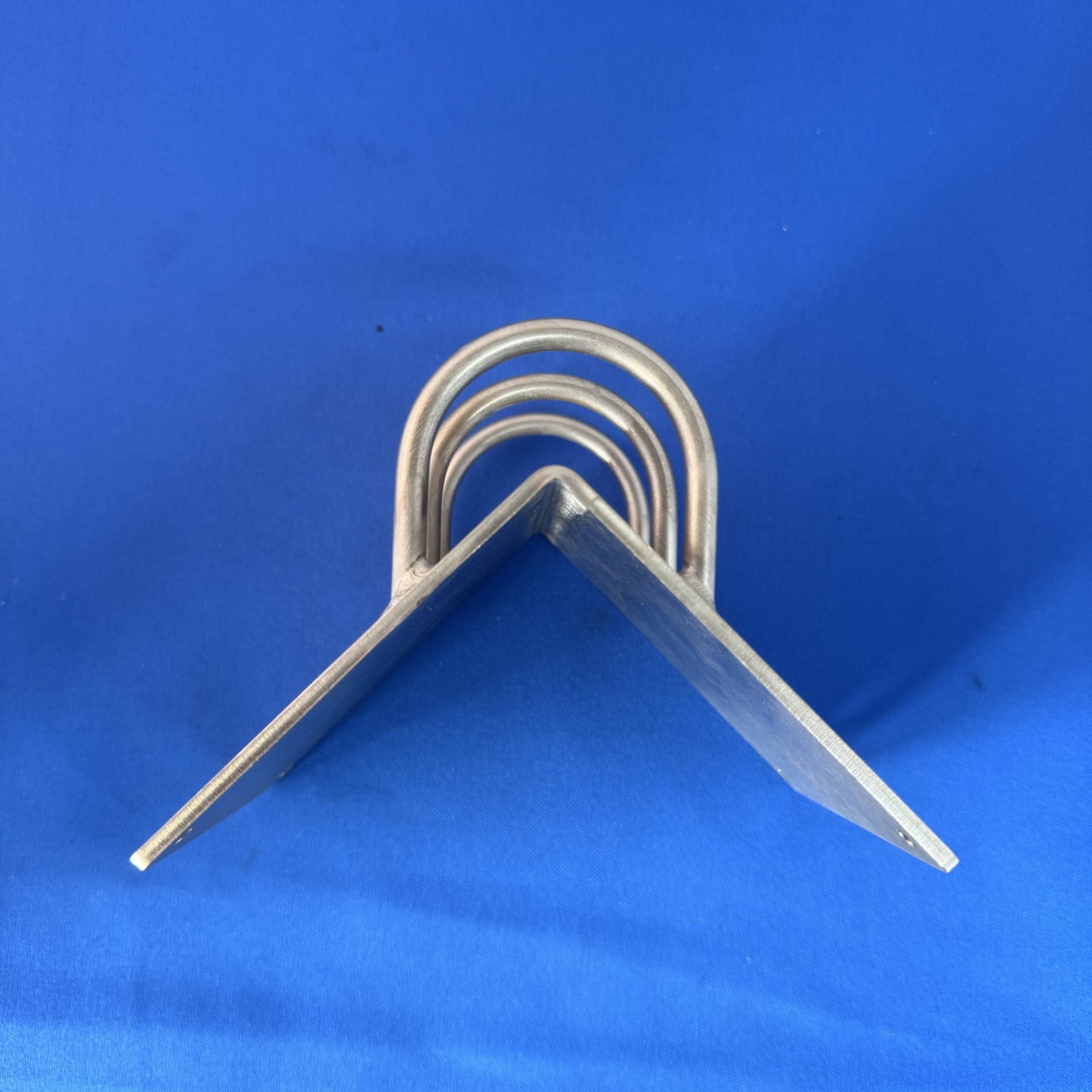

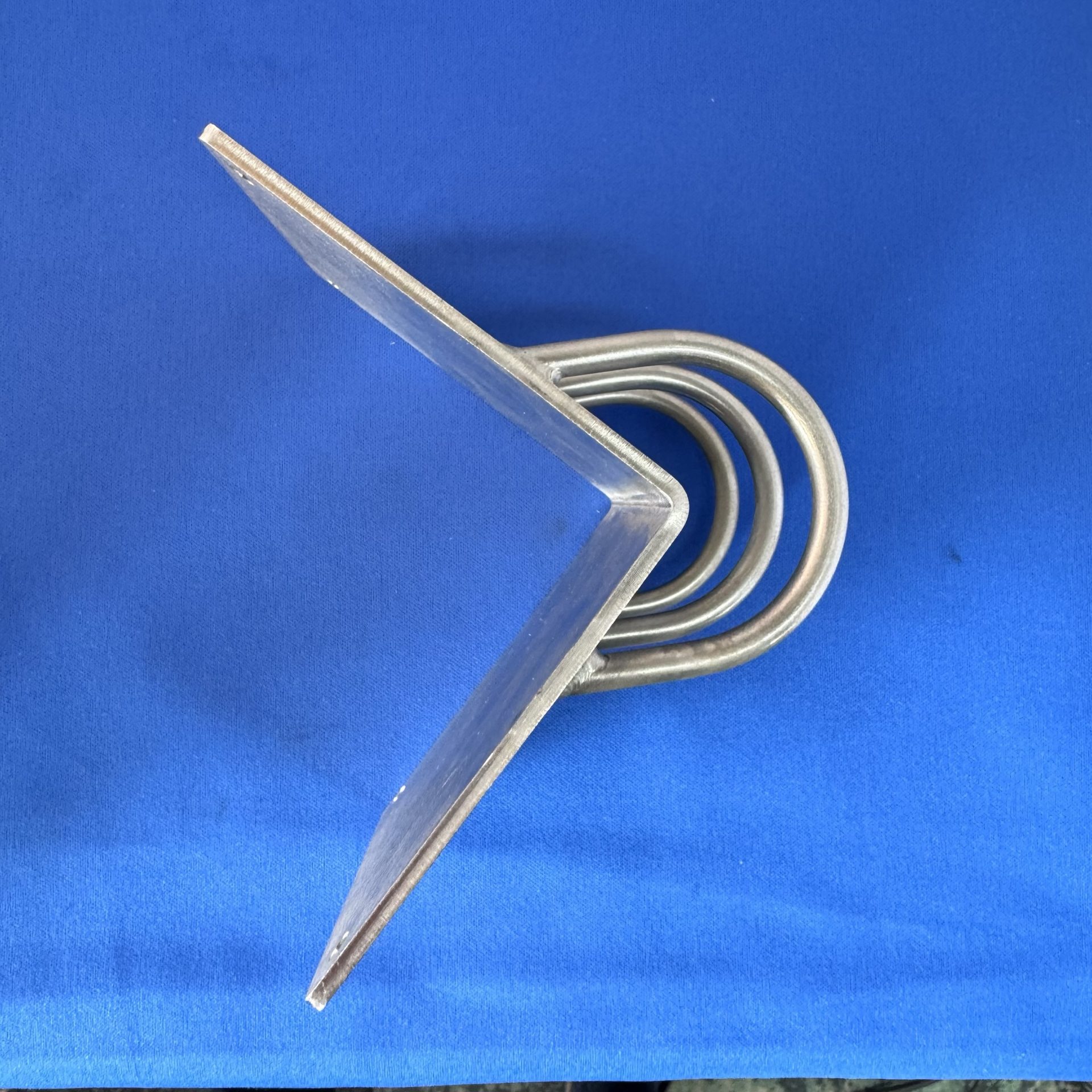

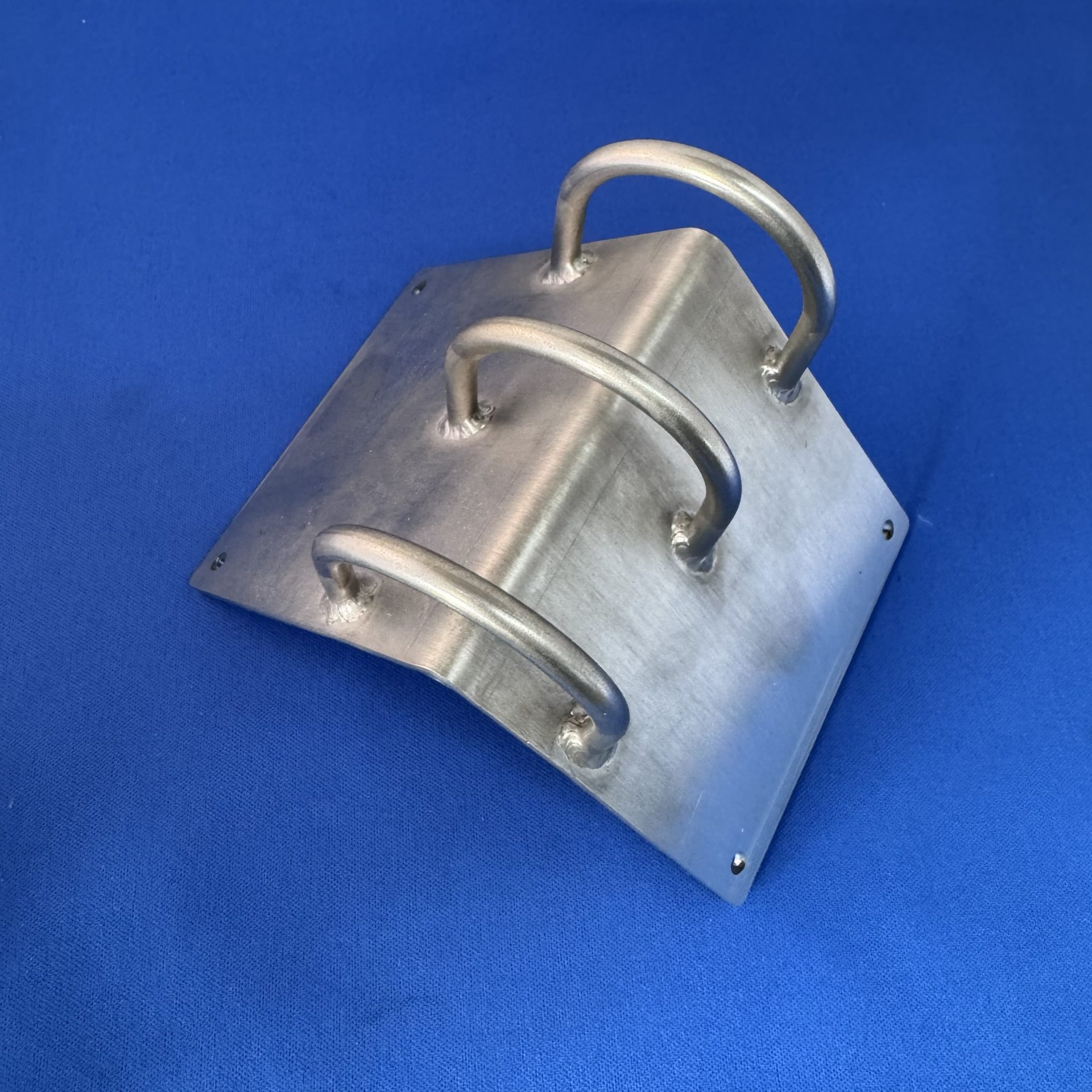

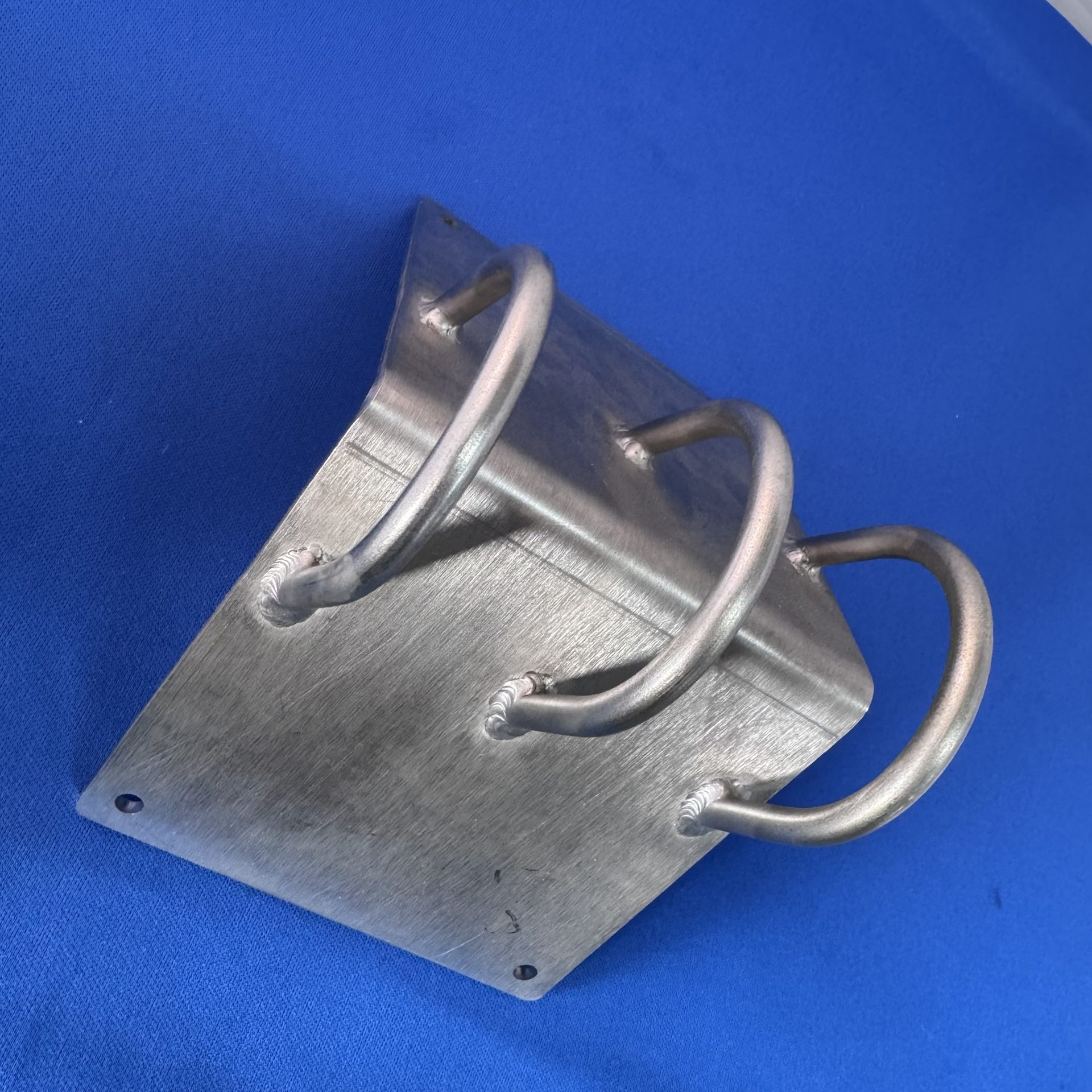

Construction

Formed stainless sheet with curved edge profile

Three welded U-shaped rope guide bars

Continuous welds at all rod contact points

Smooth radiused surfaces to minimize rope wear

Mounting / Fixing

4 × pre-drilled fixing holes (one each side of base plate)

Compatible with:

Mechanical anchors

Screws/bolts for temporary or permanent installation

Can be used loose (non-fixed) where appropriate and risk assessed

Weight 0,7 kg

Performance / Use

Designed for rope protection, not load-bearing or anchoring

Suitable for:

Single or multiple rope systems

Static and low-stretch kernmantle ropes (10–13 mm typical)

Reduces friction and prevents sharp edge contact

Corrosion resistant (suitable for harsh and marine environments)

Robust, maintenance-free construction

Compact and easily deployable

Inspection & Maintenance

Pre-use inspection required:

Check weld integrity

Ensure no burrs, sharp edges, or deformation

Clean periodically to remove contaminants

Typical Applications

Rope solo

Roof edges and parapets

Steel beams and structural edges

Concrete ledges

Industrial and offshore environments
